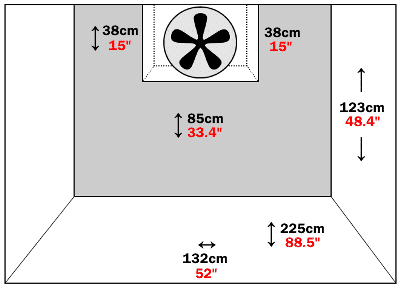

Ford Transit SWB Dimensions
Dimensions are minimums, there is
often up to 4 inches or 10 cm more room
on either side due to the wheel wells.
Black = Centimetres
Red = Inches
3.65 Cubic Meters less 0.11 cm = 3.54 Cubic
Meters
4.78 Cunic Yards less 0.14 cy = 4.64 Cubic
Yards
Euro Pallet Dimensions = 120 cm x 80 cm
Sea Pallet Dimensions = 120 cm x 100 cm
Normal SWB Low Roof Transit
|
|
|
Overall Length(mm): |
|
4834 |
190.3" |
|
Overall Width(mm): |
|
2360 |
92.9" |
|
Overall Height(mm): |
|
1970 |
|
|
Height inc Freezer(mm): |
|
2370 |
93.3" |
|
Wheelbase(mm): |
|
2933 |
|
|
Turning Circle(m): |
|
10.8k |
|
|
Loading Height(mm): |
|
516 |
|
|
Rear Door Height(mm): |
|
1370 |
|
|
Rear Door Width(mm): |
|
1540 |
|
|
Load Height(mm): |
|
1430 |
|
|
Load Length(mm): |
|
2582 |
|
|
Min Load Width(mm): |
|
1390 |
|
|
Max Load Width(mm): |
|
1762 |
|
|
Load Volume(M3): |
|
6.6 |
|
|
Gross Payload(Kg): |
|
843 |
1858 Lbs |
|
Gross Vehicle Weight(Kg): |
|
2455 |
5412 Lbs |
|
Kerb Weight(Kg): |
|
1612 |
3554 Lbs |
|
Towing Limit(Kg): |
|
1800 |
|
|
Tank(litres/gallons): |
|
80/18 |
|
|
|
|
